LETO Phase Only Spatial Light Modulator

The LETO phase modulator is based on reflective LCOS microdisplays with 1920 x 1080 pixel resolution. With a pixel pitch of only 6.4 m and small interpixel gaps of 0.2 m the LETO SLM provides a high f..

 The LETO phase modulator is based on reflective LCOS microdisplays with 1920 x 1080 pixel resolution. With a pixel pitch of only 6.4 μm and small interpixel gaps of 0.2 μm the LETO SLM provides a high fill factor of 93% and thereby high light efficiency.

The LETO is also prepared to work in color-field-sequential (CFS) mode. For operation with color-switchable LASER the LED connector can be used to synchronize the light source with the device.

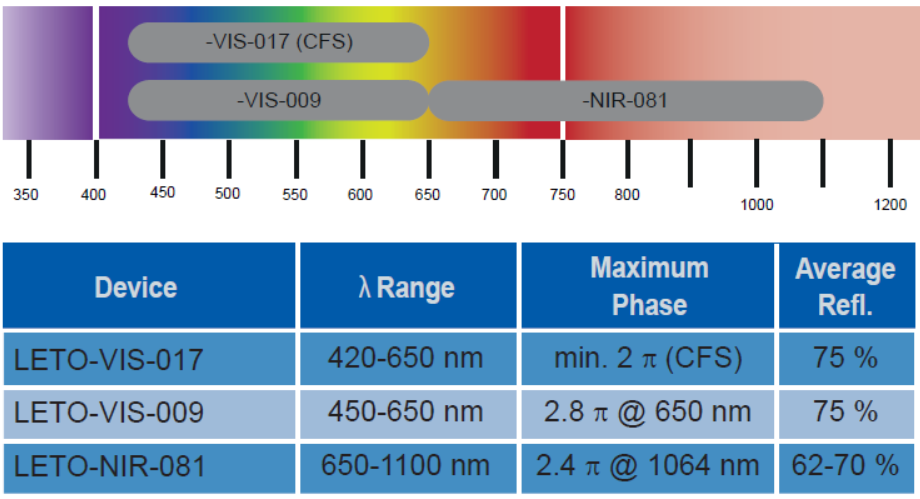

The LETO series covers a version for the visible (420-650 nm), a version for version for the near IR (650 -1100 nm) and a fast version for Color Sequential (CFS) operation in the visible.

Display Type

Reflective LCOS

Resolution

1920 x 1080 Pixel

Pixel Pitch

6.4μm

Fill Factor

93%

Active Area / Diagonal

12.5 x 7.1 mm / 0.55"

Addressing Bit Depth

8(10 Bit CLUT)

Signal Format

HDMI-HDTV Res

Input Frame Rate

60Hz / 180Hz
